5 Steps to Modeling Tectonic Plate Boundaries with Earthquake Data

Deep beneath our feet, the Earth’s tectonic plates are in constant motion, grinding against each other, pulling apart, or colliding with tremendous force. These interactions are the primary drivers of earthquakes, offering us a unique window into the otherwise hidden world of plate boundaries. Indeed, the distribution of earthquakes across the globe is not random; instead, it paints a vivid picture of these dynamic boundaries. By meticulously analyzing earthquake data – specifically the location, depth, and magnitude of seismic events – scientists can construct detailed maps of plate boundaries, revealing their intricate geometries and the types of interactions occurring. Furthermore, this information is crucial for understanding the potential hazards associated with each boundary type, allowing for more accurate seismic risk assessments and ultimately contributing to more resilient communities in earthquake-prone regions. The power of earthquake data to illuminate these subsurface processes is undeniable, transforming our understanding of the Earth’s dynamic nature.

Moreover, the depth of earthquakes provides significant insights into the nature of plate boundaries. Shallow earthquakes, those occurring within the first 70 kilometers of the Earth’s crust, are typically associated with transform boundaries, where plates slide past each other horizontally. For instance, the San Andreas Fault in California is a prime example of a transform boundary, characterized by frequent shallow earthquakes. Conversely, subduction zones, where one plate dives beneath another, generate earthquakes across a wide range of depths. As the subducting plate descends into the mantle, it triggers earthquakes at increasing depths, sometimes reaching hundreds of kilometers. Consequently, the distribution of earthquake depths along a subduction zone provides crucial information about the angle and geometry of the descending plate. Additionally, the magnitude of earthquakes further refines our understanding of the forces at play. Larger magnitude earthquakes generally indicate greater stress accumulation and release along the boundary, highlighting zones of particularly intense interaction. In essence, by combining information on location, depth, and magnitude, earthquake data provides a comprehensive 3D view of plate boundaries.

Furthermore, the ongoing advancements in seismic monitoring and data analysis techniques continue to refine our models of plate boundaries. High-resolution seismic networks, combined with sophisticated algorithms, allow for the detection and location of even the smallest earthquakes, providing an increasingly detailed picture of fault zones and their behavior. In addition, the development of techniques like seismic tomography, which uses seismic waves to image the Earth’s interior, allows scientists to visualize the structure of subducting slabs and the surrounding mantle, providing further constraints on plate boundary geometry. Furthermore, the integration of GPS data, which measures the surface movement of the Earth, provides another independent measure of plate motion and deformation, complementing the information derived from earthquake data. Consequently, the convergence of these diverse datasets is leading to a more nuanced and comprehensive understanding of plate tectonics and the intricate processes that shape our planet. Ultimately, this improved knowledge translates into better hazard assessments, more informed urban planning, and ultimately, safer and more resilient communities in the face of earthquake hazards.

Gathering and Preprocessing Earthquake Data

Before we can dive into modeling tectonic plate boundaries, we need a solid foundation of earthquake data. This crucial first step involves gathering raw data from reliable sources and then cleaning and preparing it for analysis. This “preprocessing” stage is vital for ensuring the accuracy and reliability of our final model. Think of it like preparing ingredients before cooking – you want everything to be clean, chopped, and ready to go before you start.

Several reputable organizations provide earthquake catalogs, which are essentially comprehensive lists of recorded earthquakes. One of the most widely used is the United States Geological Survey (USGS), offering a wealth of data freely available online. Other valuable sources include the International Seismological Centre (ISC) and various regional seismic networks. These catalogs typically provide details like the date and time of the earthquake, its location (latitude and longitude), depth, and magnitude. These parameters will be fundamental in our analysis.

When downloading earthquake data, you’ll often encounter it in text-based formats like CSV (Comma Separated Values) or plain text. These formats are easily handled by data analysis software like Python with libraries like Pandas, or even spreadsheet software like Excel. Once you’ve imported your data, it’s time to clean it up. Real-world data is rarely perfect, and earthquake catalogs can contain errors, missing values, and inconsistencies. One common issue is duplicate entries, which can skew our analysis. We need to identify and remove these duplicates carefully.

Another important preprocessing step is filtering the data. For modeling tectonic plate boundaries, we might focus on earthquakes within a specific geographic region or time frame. We might also choose to filter by earthquake depth, as shallow earthquakes are often more indicative of plate boundary activity. Additionally, considering a minimum magnitude threshold can help eliminate smaller, less informative events from our dataset, which can be especially helpful when dealing with very large datasets. This careful selection of data will allow us to focus on the most relevant information for our model.

After filtering, it’s crucial to handle missing data. Sometimes, certain earthquake parameters, like depth, might not be available for all events. We have a few options here: we can remove entries with missing data, or we can try to fill in those gaps using techniques like imputation, which essentially estimates the missing values based on the existing data. The choice depends on the extent of missing data and the specific requirements of our model. A good understanding of the dataset is crucial at this point. For instance, understanding the reasons for missing data can help in making informed decisions on how to deal with them.

Data Sources and Considerations

Locating Earthquake Hypocenters and Epicenters

Pinpointing the exact location of an earthquake is crucial for understanding Earth’s tectonic processes. We differentiate between two key locations: the hypocenter and the epicenter. The hypocenter is the precise point *within* the Earth where the earthquake rupture initiates. Think of it as the underground origin of the quake. The epicenter, on the other hand, is the point on the Earth’s *surface* directly above the hypocenter. It’s what we typically see reported in news stories as the earthquake’s location.

Determining the Hypocenter

Locating the hypocenter requires data from multiple seismic stations. These stations detect seismic waves, vibrations that radiate outward from the earthquake’s point of origin. A crucial factor is the difference in arrival times between P-waves and S-waves. P-waves (primary waves) are compressional waves that travel faster than S-waves (secondary waves), which are shear waves. Imagine pushing a slinky: the compression travels faster than the side-to-side wiggle. This time difference between P-wave and S-wave arrivals, called the S-P interval, is directly related to the distance of the seismic station from the hypocenter. The greater the S-P interval, the further away the earthquake. Imagine hearing thunder after seeing lightning: the longer the delay, the farther away the storm.

To visualize this, imagine a single seismic station. Knowing the S-P interval tells us the *distance* to the hypocenter, but not the *direction*. We can represent this as a circle around the station, with a radius equal to the calculated distance. The hypocenter lies somewhere on that circle. Now, if we incorporate data from a second station, we get another circle. The hypocenter must lie on *both* circles, meaning it’s at one of the two points where they intersect. Adding data from a third station narrows down the possibilities to just *one* point: the intersection of all three circles. This is the principle of triangulation. In reality, we often use data from many more than three stations to improve accuracy and account for uncertainties in velocity models.

Here’s a simplified example. Imagine three seismic stations (A, B, and C) and their respective S-P intervals:

Using these distances, and knowing the locations of the seismic stations, we can draw circles on a map and find their intersection point—the hypocenter. This is a simplified example, and in practice, more complex calculations are used to account for variations in Earth’s structure and wave propagation.

Factors Affecting Hypocenter Accuracy

The accuracy of hypocenter determination is influenced by various factors. The density and distribution of seismic stations play a crucial role. A denser network, especially near the earthquake, allows for more precise triangulation. The accuracy of Earth’s velocity models also matters. These models describe how seismic waves travel through different layers of the Earth. Inaccuracies in these models can introduce errors in hypocenter calculations. Finally, the quality of the recorded seismic data itself is important. Noisy data or difficulty in accurately picking the arrival times of P- and S-waves can also impact accuracy.

Pinpointing the Epicenter

Once the hypocenter is located, determining the epicenter is straightforward. It’s simply the point on the Earth’s surface directly above the hypocenter. We can calculate the epicenter’s latitude and longitude based on the hypocenter’s coordinates and depth. The epicenter is the location most often reported in news, as it’s the easiest to understand in terms of geographic location and impact on human populations.

Identifying Seismic Zones and Clusters

Earthquake data provides a crucial window into the Earth’s structure and the dynamic processes happening beneath our feet. By mapping where earthquakes occur, we can pinpoint the boundaries of tectonic plates and understand how these massive pieces of Earth’s crust interact. This information isn’t just for scientific curiosity; it’s fundamental to assessing earthquake hazards and creating safer communities.

Pinpointing Plate Boundaries with Earthquake Locations

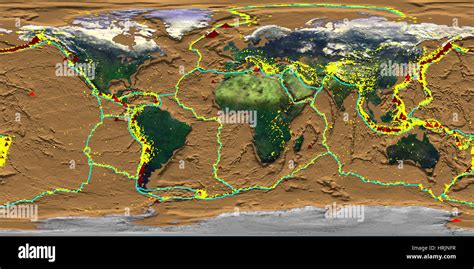

Earthquakes aren’t randomly scattered across the globe. They tend to cluster along distinct lines, and these lines often mark the boundaries between tectonic plates. These plates are constantly moving, albeit very slowly, and it’s at their edges where most of the action happens. There are three main types of plate boundaries: convergent (where plates collide), divergent (where plates move apart), and transform (where plates slide past each other). Each type generates distinct earthquake patterns.

Distinguishing Between Boundary Types Using Earthquake Depth

The depth at which earthquakes originate provides further clues about the type of plate boundary involved. Shallow earthquakes (those occurring within the first 70 km of the Earth’s surface) are common at all plate boundaries. However, deep earthquakes (originating at depths greater than 70 km, sometimes reaching down to 700 km) are a hallmark of subduction zones. These occur at convergent boundaries where one plate dives beneath another. By analyzing the depth distribution of earthquakes along a boundary, we can distinguish between subduction zones, where deep earthquakes are prevalent, and other types of boundaries where earthquakes are predominantly shallow.

Characterizing Seismic Zones and Clusters Through Data Analysis

To truly understand seismic zones and clusters, we need to dive into the data. This involves more than just plotting earthquake locations on a map. We analyze various aspects of the seismic data, including the frequency, magnitude, and depth of earthquakes within specific areas. This analysis helps us define seismic zones, which are regions with similar earthquake characteristics. For instance, a seismic zone might be characterized by frequent, shallow earthquakes, indicating a transform boundary, or by a mix of shallow and deep earthquakes, pointing towards a subduction zone. Identifying seismic clusters requires a finer-grained analysis. A cluster is a concentrated area of earthquake activity within a seismic zone. Statistical tools can help us identify these clusters and differentiate them from the background seismicity of the region. Analyzing these clusters can reveal important information about active fault segments within the larger plate boundary system.

Consider these factors when analyzing earthquake data:

By combining the spatial distribution of earthquakes with their depth and frequency, we can create a comprehensive picture of plate boundaries and the associated seismic hazards. This detailed analysis helps us delineate the boundaries more accurately, understand the different types of plate interactions occurring, and ultimately develop more effective earthquake preparedness strategies.

Analyzing Earthquake Depth and Magnitude Patterns

Understanding the distribution of earthquake depths and magnitudes is crucial for mapping tectonic plate boundaries. Different types of boundaries exhibit characteristic earthquake patterns. By carefully examining these patterns, we can infer the type of boundary and its precise location.

Earthquake Depth and Tectonic Plate Boundaries

Earthquake depth provides valuable insights into the nature of the plate boundary. Shallow earthquakes (0-70 km depth) are common at all types of boundaries, reflecting the brittle deformation of the Earth’s crust. However, intermediate (70-300 km) and deep earthquakes (300-700 km) are primarily associated with subduction zones, where one plate dives beneath another.

Wadati-Benioff Zones and Subduction

The inclined zone of earthquakes created by a subducting plate is known as the Wadati-Benioff zone. This zone helps define the geometry of the subducting slab as it descends into the mantle. The depth of the deepest earthquakes within the Wadati-Benioff zone can indicate the angle of subduction. Steeper subduction angles generally correlate with deeper earthquake activity. Visualizing earthquake locations in a cross-section perpendicular to the trench reveals the Wadati-Benioff zone as a sloping band of earthquake hypocenters (the points within the Earth where the earthquake rupture initiates). Analyzing the distribution of earthquakes within this zone provides crucial information about the subduction process and helps determine the location and dip of the subducting slab. This data can be used to create detailed models of the subsurface structure and to understand the forces driving tectonic plate movements.

Further, the magnitude of earthquakes within the Wadati-Benioff zone also provides information about the stress regime and the frictional properties of the subducting slab. Larger magnitude earthquakes typically correspond to areas of higher stress accumulation and sudden release. Studying variations in magnitude along the Wadati-Benioff zone can help pinpoint areas of greater seismic hazard and contribute to a better understanding of the factors influencing earthquake rupture.

The presence or absence of a Wadati-Benioff zone can be a key indicator when distinguishing between different types of convergent boundaries. For example, a collision zone, where two continental plates collide, will lack a well-defined Wadati-Benioff zone because continental crust is too buoyant to subduct deeply. Conversely, a subduction zone involving an oceanic plate and a continental plate or two oceanic plates will exhibit a prominent Wadati-Benioff zone. Careful analysis of earthquake depths and their spatial distribution can be essential in identifying and characterizing the type of convergent boundary.

Applying Seismic Tomography for 3D Earth Structure

Seismic tomography is like getting a CT scan for the Earth. Just as doctors use X-rays to create images of the inside of the human body, seismologists use earthquake waves to create images of the Earth’s interior. When an earthquake happens, it sends out seismic waves that travel through the Earth. These waves travel at different speeds depending on the temperature and density of the rocks they pass through. Hotter rocks are less dense and slow down the waves, while colder, denser rocks speed them up. By carefully measuring the arrival times of these waves at seismic stations around the world, we can begin to map out these variations in speed.

Imagine trying to figure out the shape of a hidden object by throwing a bunch of tiny balls at it and seeing how they bounce off. That’s essentially what we’re doing with seismic tomography. We use powerful computers to analyze the massive amounts of data collected from earthquakes all over the globe. The computers piece together the information about wave travel times, much like assembling a complex 3D jigsaw puzzle. The result? A detailed, three-dimensional image of the Earth’s internal structure, showing variations in temperature and density.

This technique is particularly useful for mapping out plate boundaries. As tectonic plates interact, they create distinct zones with different physical properties. Subduction zones, where one plate dives beneath another, are often associated with colder, denser material, while mid-ocean ridges, where plates pull apart, are characterized by hotter, less dense upwelling mantle material. These temperature and density contrasts clearly show up in seismic tomography models, providing a powerful tool for visualizing and understanding the complex processes happening at plate boundaries.

For example, seismic tomography can help us delineate the precise geometry of a subducting slab, showing how deep it extends into the mantle and whether it’s deforming or contorting. It can also reveal details about the mantle flow around the slab, providing insights into the forces driving plate tectonics. Similarly, in mid-ocean ridge settings, tomography can illuminate the distribution of melt within the mantle and the dynamics of magma upwelling.

Here’s a simplified illustration of how seismic velocities might correlate with temperature in a subduction zone setting:

This 3D view is crucial for understanding not only the current state of plate boundaries but also their evolution over time. By comparing tomographic images from different regions and geological periods, researchers can track how plate boundaries have shifted and changed, providing valuable insights into the Earth’s dynamic history. Moreover, a better understanding of plate boundaries ultimately contributes to better hazard assessment and mitigation efforts related to earthquakes and volcanoes.

Integrating GPS Data for Plate Motion and Deformation

GPS technology has revolutionized our understanding of Earth’s dynamics, providing incredibly precise measurements of ground movement. This data is crucial for modeling plate boundaries and understanding the complex processes that drive earthquakes. Essentially, GPS stations act like anchors on the Earth’s surface. By tracking their positions over time, we can build a detailed picture of how the plates are moving and deforming.

One of the primary uses of GPS data in this context is determining plate velocities. We can calculate the rate and direction of plate movement by observing the subtle shifts in GPS station locations. This information is essential for understanding the overall kinematics of plate tectonics and identifying areas where plates are interacting, which are often associated with increased seismic activity. Think of it like tracking the movement of ships at sea; by observing their positions over time, you can map their courses and predict potential collisions.

Furthermore, GPS data helps us map strain accumulation. As plates interact, stress builds up along their boundaries. GPS measurements allow us to quantify this strain accumulation by observing how the Earth’s crust is being compressed, stretched, or sheared. This information is crucial for assessing earthquake hazards, as areas with high strain accumulation are more likely to experience earthquakes. Imagine a rubber band being stretched; the more it’s stretched, the greater the potential energy stored and the more forceful the snap when it breaks.

The integration of GPS data with other geophysical datasets, like seismic data, offers a more complete picture of plate boundary processes. For instance, combining GPS measurements of surface deformation with seismic data that reveals the location and depth of earthquakes helps us to define the geometry of faults and understand the mechanics of fault rupture. This combined approach allows us to refine our models of plate boundaries and improve earthquake forecasting.

GPS data is particularly helpful in understanding complex plate boundary zones where multiple plates interact. In these regions, the interplay of different tectonic forces can be difficult to disentangle. GPS measurements allow us to isolate the individual contributions of each plate and understand how they contribute to the overall deformation pattern. This is analogous to analyzing the flow of traffic at a busy intersection, where understanding the movement of individual vehicles is crucial for understanding the overall traffic pattern.

Here’s a table summarizing the key applications of GPS data in plate boundary studies:

Recent advancements in GPS technology, such as the development of denser GPS networks and improved data processing techniques, are constantly enhancing our ability to monitor plate boundaries with greater precision. This improved resolution allows us to detect even subtle ground movements, providing valuable insights into the complex interplay of forces at work along these dynamic zones. Consequently, we can create increasingly refined models that better capture the nuances of plate boundary behavior and improve our understanding of earthquake processes.

Developing Fault Plane Solutions

Earthquake data provides crucial insights into the orientation and movement of faults, the fractures in Earth’s crust where earthquakes originate. We can visualize these movements with “fault plane solutions,” also known as “beachball diagrams.” These diagrams represent the fault plane as a sphere, divided by two perpendicular planes. One plane represents the fault itself, and the other is called the auxiliary plane. By analyzing the distribution of compressional (P-wave) “first motions” – whether the ground initially moves up or down at various seismic stations – we can determine which two planes represent the fault and auxiliary plane, and then infer the type of faulting: normal, reverse (thrust), or strike-slip. Software packages like GMT (Generic Mapping Tools) or ObsPy can help automate this process, allowing you to input P-wave first motion data from seismic networks and generate a fault plane solution. Understanding individual fault motions provides building blocks for larger-scale tectonic models.

Let’s take a closer look at how to interpret a fault plane solution. Imagine looking down at the Earth. The beachball diagram is a projection of the fault plane onto a horizontal circle. Shaded areas represent compressional first motions, where the ground initially moved towards the seismic station, while unshaded areas represent dilatational first motions (ground moving away). A predominantly shaded top and bottom with an unshaded middle band indicates a thrust fault, where the hanging wall moves up relative to the footwall. Conversely, a predominantly unshaded top and bottom with a shaded middle band signifies a normal fault, where the hanging wall moves down. Strike-slip faults show alternating shaded and unshaded quadrants, indicating horizontal movement.

Example Table: Fault Plane Solution Interpretations

Tectonic Models

Fault plane solutions, when combined with other geological and geophysical data, help us construct detailed tectonic models of plate boundaries and regional deformation. By mapping numerous fault plane solutions across a region, we can identify patterns in fault orientations and slip directions. These patterns reveal the dominant stress regime acting on the crust. For example, a region dominated by thrust faults often indicates crustal shortening and convergence, while a predominance of normal faults suggests crustal extension. Areas with numerous strike-slip faults usually signify transform boundaries where plates slide past each other horizontally. The density and distribution of faults, along with their geometry as indicated by fault plane solutions, contribute to our understanding of strain accumulation and release within the Earth’s crust.

Beyond simply identifying fault types, analyzing the orientations of fault planes and slip vectors allows us to determine the principal stress directions – the orientations of maximum, intermediate, and minimum compressive stress in the crust. Software like Coulomb 3.3 can help model stress interactions and fault slip tendencies. This information can then be integrated with GPS data (measuring surface deformation) and other geological data (e.g., the age and offset of geological formations) to build more sophisticated, 3D models of tectonic plate interactions and deformation zones. These models are crucial for understanding earthquake hazard, assessing seismic risk, and predicting future earthquake activity. They also provide insights into the long-term evolution of mountain belts, basins, and other geological structures.

Using Earthquake Data to Model Plate Boundaries

Earthquake data provides crucial insights into the location and nature of plate boundaries. The precise locations of earthquake epicenters, determined through global seismic networks, delineate the zones where plates interact. Analyzing the depth of earthquakes further refines our understanding. Shallow earthquakes are common along divergent and transform boundaries, while deeper earthquakes are characteristic of subduction zones, tracing the path of the descending plate. The focal mechanisms of earthquakes, which describe the direction of fault slip, reveal the type of plate motion occurring at a boundary – whether it’s extensional, compressional, or strike-slip. By integrating these different types of earthquake data, scientists can construct detailed maps of plate boundaries and gain a deeper understanding of the forces shaping our planet.

People Also Ask about Using Earthquake Data to Model Boundaries

How do earthquake epicenters help define plate boundaries?

Earthquake epicenters, representing the point on the Earth’s surface directly above where an earthquake originates, cluster along plate boundaries. Mapping these epicenters reveals the linear features that correspond to the zones of interaction between plates. High concentrations of epicenters clearly mark plate boundaries, even in areas where other geological evidence might be less obvious.

What role does earthquake depth play in modeling subduction zones?

Earthquake depth is particularly revealing in the case of subduction zones. As one plate dives beneath another, it generates earthquakes along a sloping plane known as the Wadati-Benioff zone. The depth of these earthquakes increases as the subducting plate descends further into the mantle. By plotting the depths of earthquakes, scientists can map the geometry of the subducting slab and understand the processes occurring at depth.

What is the significance of focal mechanisms in understanding plate boundaries?

Focal mechanisms represent the orientation and direction of slip on the fault plane during an earthquake. They provide crucial information about the type of stress and strain acting at a plate boundary. For example, a normal fault mechanism indicates extensional stress, typical of divergent boundaries. A thrust fault mechanism signifies compressional stress, characteristic of convergent boundaries. Strike-slip mechanisms indicate horizontal shearing, as seen along transform boundaries. Analyzing focal mechanisms helps determine the nature of plate interaction and the relative motion of plates.

Can earthquake data alone define plate boundaries precisely?

While earthquake data is invaluable, it’s not the only tool used to define plate boundaries. Other geological and geophysical data, such as seafloor spreading rates, volcanic activity, and GPS measurements of plate motion, are integrated with earthquake data to create a comprehensive model of plate boundaries. Each data source offers a different perspective, and combining them allows for a more robust and accurate representation of plate tectonics.
